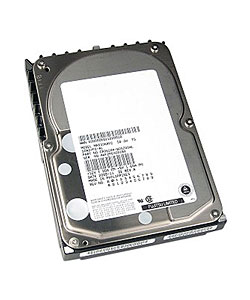

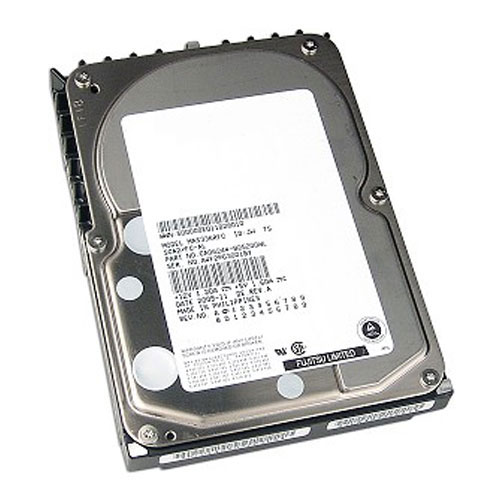

36GB 80pin SCSI Fujitsu Hard Drive (Refurb)

Product Description

36GB 80pin SCSI Fujitsu Hard Drive (Refurb)

Product Summary:
Today's enterprise environments demand reliable storage and immediate access to massive amounts of data. That's why Fujitsu makes SCSI Channel disk drives enhanced with the latest technologies, such as giant magneto-resistive (GMR) heads, super-high-density media and fast read channels. Together, these innovative features give end users the capacity, performance and reliability they need for video editing, data warehousing and other demanding applications.

• Manufacturer: Fujitsu
• Manufacturer Part Number: MAS3367NC
• Manufacturer Website Address: www.fujitsu.com
• Product Name: Enterprise MAS3367 Hard Drive
• Packaged Quantity: 1
• Product Type: Hard Drive
• Storage Capacity: 36.7GB
• Data Transfer Rate: 118.2MBps Maximum Internal/320MBps Maximum External
• Rotational Speed: 15000 rpm
• Interfaces/Ports: 80-pin SCA-2 Ultra320 SCSI SCSI
• Form Factor: 3.5" 1/3H Plug-in Module Hot-swappable
• Dimensions: 1" Height x 4" Width x 5.7" Depth, 1" Height x 4" Width x 5.7" Depth
• Weight: 1.8 lb

Shipping:  Leaves our warehouse in 1-3 business days.*

Warranty: 46 Day Distributor
Materials: Electronic components
Model No: MAS3367NC
Dimensions: 5.7 in. H x 4.0 in. W x 1.0 in. D







* For your safety, some orders go through our fraud prevention department. If yours is selected, we will quickly notify you (doing this may cause a delay of up to 3 days).

Technical Specifications

36GB 80pin SCSI Fujitsu Hard Drive (Refurb)

Manufacturer:	Fujitsu
Manufacturer Part Number:	MAS3367NC
Manufacturer Website Address:	www.fujitsu.com
Brand Name:	Fujitsu
Product Line:	Enterprise
Product Name:	Enterprise MAS3367 Hard Drive
Packaged Quantity:	1
Product Type:	Hard Drive

Storage Capacity:	36.7GB
Heads:	4 Physical
Cylinders:	27100
Platter:	2

Data Transfer Rate:	118.2MBps Maximum Internal/320MBps Maximum External
Rotational Speed:	15000 rpm
Seek Time:	0.3 ms Track-to-Track Read Typical 0.5 ms Track-to-Track Write Typical 3.3 ms Average Read Typical 3.8 ms Average Write Typical 8 ms Full-stroke Read Typical 9 ms Full-stroke Write Typical 9 ms Full-stroke Write Typical 3.8 ms Average Write Typical 0.5 ms Track-to-Track Write Typical 0.3 ms Track-to-Track Read Typical 3.3 ms Average Read Typical
Latency:	2 ms Average 2 ms Average
Buffer:	8MB

Interfaces/Ports:

80-pin SCA-2 Ultra320 SCSI SCSI

MTBF:	1200000 Hour
Shock Tolerance:	65Gs @ 2 ms Half Sine Wave Operating 250Gs @ 2 ms Half Sine Wave Non-operating
Vibration Tolerance:	1Gs 20 Hz to 300 Hz Operating 5Gs 20 Hz to 300 Hz Non-operating 1Gs 20 Hz to 300 Hz Operating
Data Error Rate:	1/10E8 Seek Error

Input Voltage:	5 V DC or 12 V DC 5 V DC or 12 V DC
Input Current:	0.85 A @5V DC Spin-up 0.85 A @5V DC Spin-up 2.5 A @12V DC Spin-up
Power Consumption:	8.7W Idle 8.7W Idle

Temperature:	41 °F (5.0 °C) to 131 °F (55.0 °C) Operating 41 °F (5 °C) to 131 °F (55 °C) Operating
Humidity:	5 to 95% Operating
Altitude:	9840 ft Maximum Operating

Form Factor:	3.5" 1/3H Plug-in Module Hot-swappable
Dimensions:	1" Height x 4" Width x 5.7" Depth 1" Height x 4" Width x 5.7" Depth
Shipping Dimensions:	5" Height x 6" Width x 7.5" Depth
Weight:	1.8 lb
Shipping Weight:	2 lb 2 lb

Additional Information:	Power requirements: Idle(ready): 8.7 W (typ.)
Compatibility:	PC MAC
Certifications & Standards:	S.M.A.R.T. 480-bit Reed Solomon ECC

Shipping:  Leaves our warehouse in 1-3 business days.*

Warranty: 46 Day Distributor
Materials: Electronic components
Model No: MAS3367NC
Dimensions: 5.7 in. H x 4.0 in. W x 1.0 in. D







* For your safety, some orders go through our fraud prevention department. If yours is selected, we will quickly notify you (doing this may cause a delay of up to 3 days).
