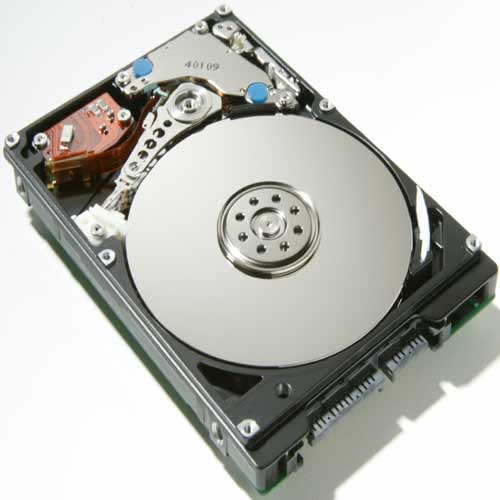

Hitachi TravelStar 40GB SATA 9.5mm HDD (OEM)

Product Description

Hitachi TravelStar 40GB SATA 9.5mm HDD (OEM)

Product Summary:

The Hitachi Travelstar 5K100 Hard Drive delivers a winning combination of characteristics. With the industry's lowest idle power and enhancements to the mechanical and electrical design, this 5400 rpm drive is the ideal choice for notebook PCs.

• Manufacturer: Hitachi, Ltd
• Manufacturer Part Number: 0A26922
• Manufacturer Website Address: www.hitachi.us
• Product Name: Travelstar 5K100 HTS541040G9SA00 Hard Drive
• Product Type: Hard Drive
• Storage Capacity: 40GB
• Data Transfer Rate: 150MBps External Maximum Serial ATA, 493Mbps Maximum Internal/150MBps Maximum External
• Rotational Speed: 5400 rpm
• Interfaces/Ports: 1 x 7-pin Serial ATA/150 Serial ATA
• Shock Tolerance: 160Gs @ 1 ms Half Sine Wave Operating, 1000Gs @ 1 ms Half Sine Wave Non-operating, 300Gs @ 2 ms Half Sine Wave Operating
• Form Factor: 2.5" Internal
• Dimensions: 0.37" Height x 0.28" Width x 3.94" Depth
• Weight: 3.35 oz

Shipping:  Leaves our warehouse in 1-3 business days.*

Warranty: 30 Day Distributor
Materials: Electronics
Model No: 0A26922
Dimensions: See above







* For your safety, some orders go through our fraud prevention department. If yours is selected, we will quickly notify you (doing this may cause a delay of up to 3 days).

Technical Specifications

Hitachi TravelStar 40GB SATA 9.5mm HDD (OEM)

Manufacturer:	Hitachi, Ltd
Manufacturer Part Number:	0A26922
Manufacturer Website Address:	www.hitachi.us
Brand Name:	Hitachi
Product Line:	Travelstar
Product Series:	5K100
Product Name:	Travelstar 5K100 HTS541040G9SA00 Hard Drive
Product Type:	Hard Drive

Storage Capacity:	40GB
Heads:	2 Physical
Platter:	1
Bytes Per Sector:	512

Data Transfer Rate:	493Mbps Maximum Internal/150MBps Maximum External 150MBps External Maximum Serial ATA
Rotational Speed:	5400 rpm
Seek Time:	12 ms Average Read Typical
Latency:	5.5 ms Average
Buffer:	8MB
Start/Stop Cycles:	600000

Interfaces/Ports:

1 x 7-pin Serial ATA/150 Serial ATA

Shock Tolerance:

300Gs @ 2 ms Half Sine Wave Operating 160Gs @ 1 ms Half Sine Wave Operating 1000Gs @ 1 ms Half Sine Wave Non-operating

Input Voltage:	5 V DC 5%
Power Consumption:	1.2W Active Idle (Average) (Typical) @ 5 V DC 0.85W Low Power Idle (Average) (Typical) @ 5 V DC 5W Startup (Maximum Peak) (Typical) @ 5 V DC 2W Read (Average) (Typical) @ 5 V DC 0.2W Sleep (Typical) @ 5 V DC 0.4W Standby (Average) (Typical) @ 5 V DC

Temperature:	5 °C (41 °F) to 55 °C (131 °F) Operating -40 °C (-40 °F) to 65 °C (149 °F) Non-operating 5 °C (41 °F) to 55 °C (131 °F) Operating -40 °C (-40 °F) to 65 °C (149 °F) Non-operating
Sound Emission:	24 dB Operating (Typical) 22 dB Idle (Typical)

Form Factor:	2.5" Internal
Dimensions:	0.37" Height x 0.28" Width x 3.94" Depth
Weight:	3.35 oz

Additional Information:	Maximum Areal Density: 70 Gbits/sq. inch Recording Zones: 16 Fluid Dynamic Bearing (FDB) Motor Enhanced Error Correction Code (ECC) Best-Fit Applications: Notebook Systems External Storage Multimedia Digital Audio
Certifications & Standards:	RoHS Compliant

Shipping:  Leaves our warehouse in 1-3 business days.*

Warranty: 30 Day Distributor
Materials: Electronics
Model No: 0A26922
Dimensions: See above







* For your safety, some orders go through our fraud prevention department. If yours is selected, we will quickly notify you (doing this may cause a delay of up to 3 days).
