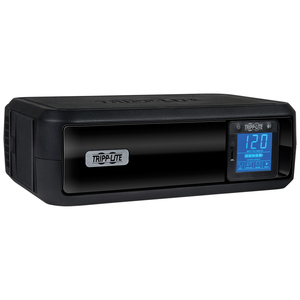

Tripp Lite Digital HT-1000UPS Audio/ Video 1000VA Mountable Tower

Product Description

Tripp Lite Digital HT-1000UPS Audio/ Video 1000VA Mountable Tower

Product Summary:

Tripp Lite's HT1000UPS Line-Interactive Digital UPS System offers voltage regulation, surge suppression and long-lasting battery support for personal computers, home entertainment systems and media centers. Internal UPS circuits support entry-level PCs for up to 60 minutes or individual VCR/DVR component for as long as 3 hours during power failures. Prevents data loss, viewing interruptions, lost recordings and loss of component programming. Automatic Voltage Regulation (AVR) circuits regulate brownouts as low as 89 volts back to usable levels without consuming battery power. EMI/RFI line noise filtering improves component performance, assuring fuller audio and sharper video. Includes 4 battery-supported outlets, plus 4 surge suppression-only outlets for items not requiring battery support. USB port enables optional unattended system shutdown without data loss in the case of extended power failure.

• Manufacturer: Tripp Lite
• Manufacturer Part Number: HT-1000UPS
• Manufacturer Website Address: www.tripplite.com
• Product Name: Digital HT-1000UPS Audio/Video 1000VA Tower/Rack-mountable
• Product Type: Line-interactive UPS
• Plug/Connector Type: NEMA 5-15P
• Receptacles: 4 x NEMA 5-15R - Backup/Surge-protected
• Interfaces/Ports: 1 x USB
• Backup/Run Time: 3 Minute 500W Full-load, 11 Minute 250W Half-load, 11 Minute(s) 250W Half-load, 3 Minute(s) 500W Full-load
• Battery Recharge Time: 8 Hour
• Load Capacity: 1000VA/500W
• Input Voltage: 110V AC
• Input Voltage Range: 120V AC
• Output Voltage: 120V AC Nominal
• Form Factor: Tower/Rack Mountable
• Dimensions: 12" Height x 3.5" Width x 6.5" Depth - Tower
• Weight: 14.6 lb

Shipping:  Leaves our warehouse in 1-3 business days.*

Warranty: 2 Year(s)
Materials: Electronic Components
Model No: HT-1000UPS
Dimensions: 5.5in H x 10in L x 14.5in H







* For your safety, some orders go through our fraud prevention department. If yours is selected, we will quickly notify you (doing this may cause a delay of up to 3 days).

Technical Specifications

Tripp Lite Digital HT-1000UPS Audio/ Video 1000VA Mountable Tower

Manufacturer:	Tripp Lite
Manufacturer Part Number:	HT-1000UPS
Manufacturer Website Address:	www.tripplite.com
Brand Name:	Tripp Lite
Product Line:	Digital
Product Model:	HT-1000UPS
Product Name:	Digital HT-1000UPS Audio/Video 1000VA Tower/Rack-mountable
Product Type:	Line-interactive UPS

Plug/Connector Type:	NEMA 5-15P
Receptacles:	4 x NEMA 5-15R - Backup/Surge-protected
Switching Time:	4 ms
Dataline Protection:	RJ-11 Phone/DSL

Load Capacity:	1000VA/500W
Input Voltage:	110V AC
Input Voltage Range:	120V AC
Output Voltage:	120V AC Nominal
Frequency:	60Hz
Voltage Handling:	±5% Output
Waveform Type:	Pulse-width Modulated Sine Wave
Surge Energy Rating:	480J
Filtering:	EMI/RFI line noise filtering improves component performance

Status Indicators:

Front panel LCD screen with blue backlight offers: Continuous input line voltage data UPS status information on line power status Battery power status Battery charge level and voltage regulation operation

Interfaces/Ports:

1 x USB

Backup/Run Time:	11 Minute(s) 250W Half-load 3 Minute(s) 500W Full-load 3 Minute 500W Full-load 11 Minute 250W Half-load
Battery Life:	4 Year to 6 Year
Battery Recharge Time:	8 Hour

Temperature:	32 °F (0 °C) to 104 °F (40 °C) Operating 5 °F (-15 °C) to 122 °F (50 °C) Storage 32 °F (0 °C) to 104 °F (40 °C) Operating 5 °F (-15 °C) to 122 °F (50 °C) Storage
Humidity:	0 to 95% Non-condensing Relative Humidity

Color:	Black
Form Factor:	Tower/Rack Mountable
Power Cord/Cable:	6 ft
Dimensions:	12" Height x 3.5" Width x 6.5" Depth - Tower
Shipping Dimensions:	5.5" Height x 14.5" Width x 10" Depth
Weight:	14.6 lb
Shipping Weight:	15.6 lb

Package Contents:	Digital HT-1000UPS Audio/Video 1000VA Tower/Rack-mountable 1 phone and 2 gold coaxial cables Owner's manual with warranty information
Additional Information:	Switches: 2 front panel switches, one main on/off power switch and one dual function alarm cancel/self test button WatchDog compatibility: Compatible with Tripp Lite's Watchdog system service to restore operation to locked equipment through soft reboot of application/OS or hard power off/on reboot of connected equipment ideal for unattended kiosk applications Low voltage transfer to battery power: Switches to battery power as line voltage decreases to 89V or lower; switches back to AC mode as line voltage increases to 94V or higher High voltage transfer to battery power: Switches to battery mode as line voltage increases to 139V or higher; switches back to AC mode as line voltage decreases to 135V or lower Cold Start: Yes, inverter can be cold started to enable temporary AC output during a power failure
Certifications & Standards:	UL1778 (TUV), cUL (TUV), FCC Class B, FCC part 68 (US & Canada)

Shipping:  Leaves our warehouse in 1-3 business days.*

Warranty: 2 Year(s)
Materials: Electronic Components
Model No: HT-1000UPS
Dimensions: 5.5in H x 10in L x 14.5in H







* For your safety, some orders go through our fraud prevention department. If yours is selected, we will quickly notify you (doing this may cause a delay of up to 3 days).
